Automatic Injection Machine - 50g / 150g Shot size

50g /150g Automatic Injection Machine. Make high quality molded, capable of producing small to medium volumes daily.

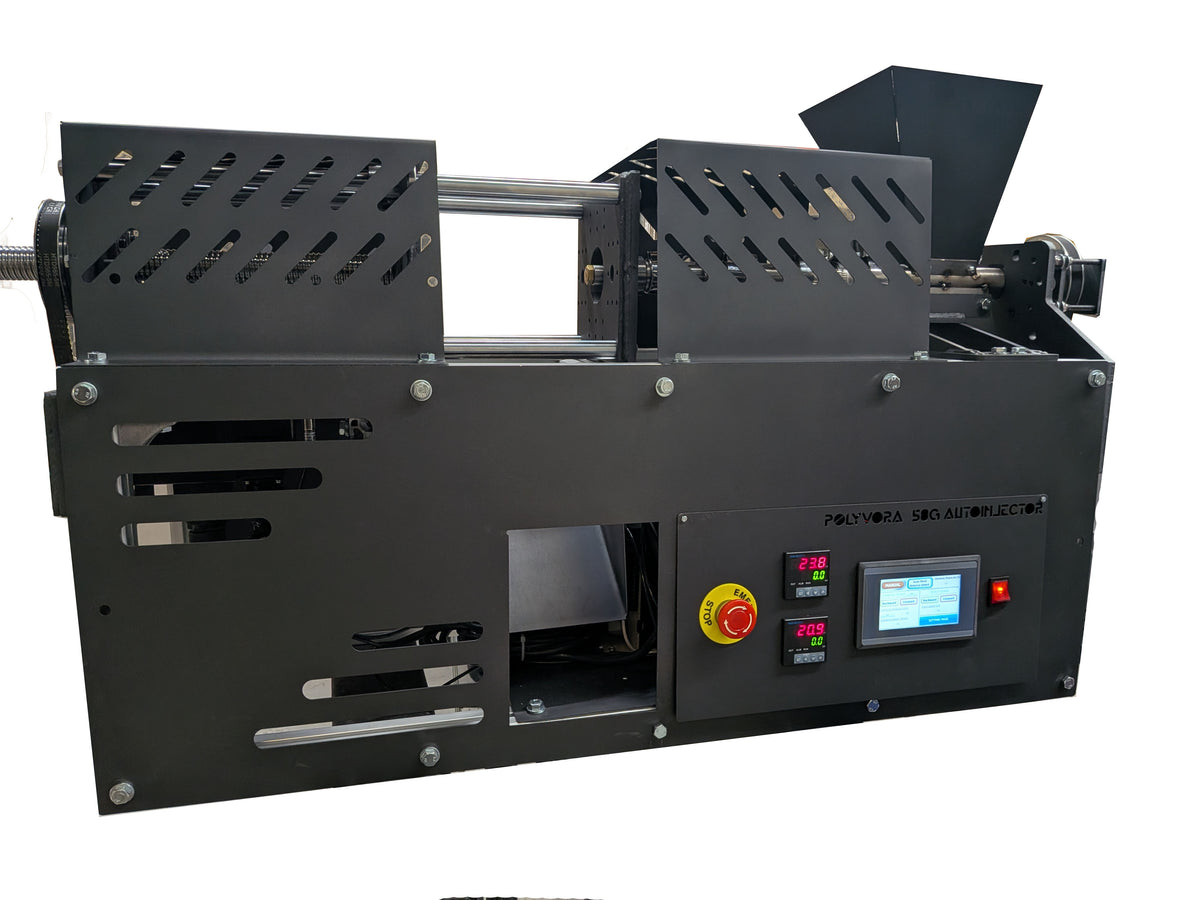

The 50g machine fits well in any shop, studio, mobile workspace well, and pairs well with our Basic Machines to fill out a productive educational or small business workspace.

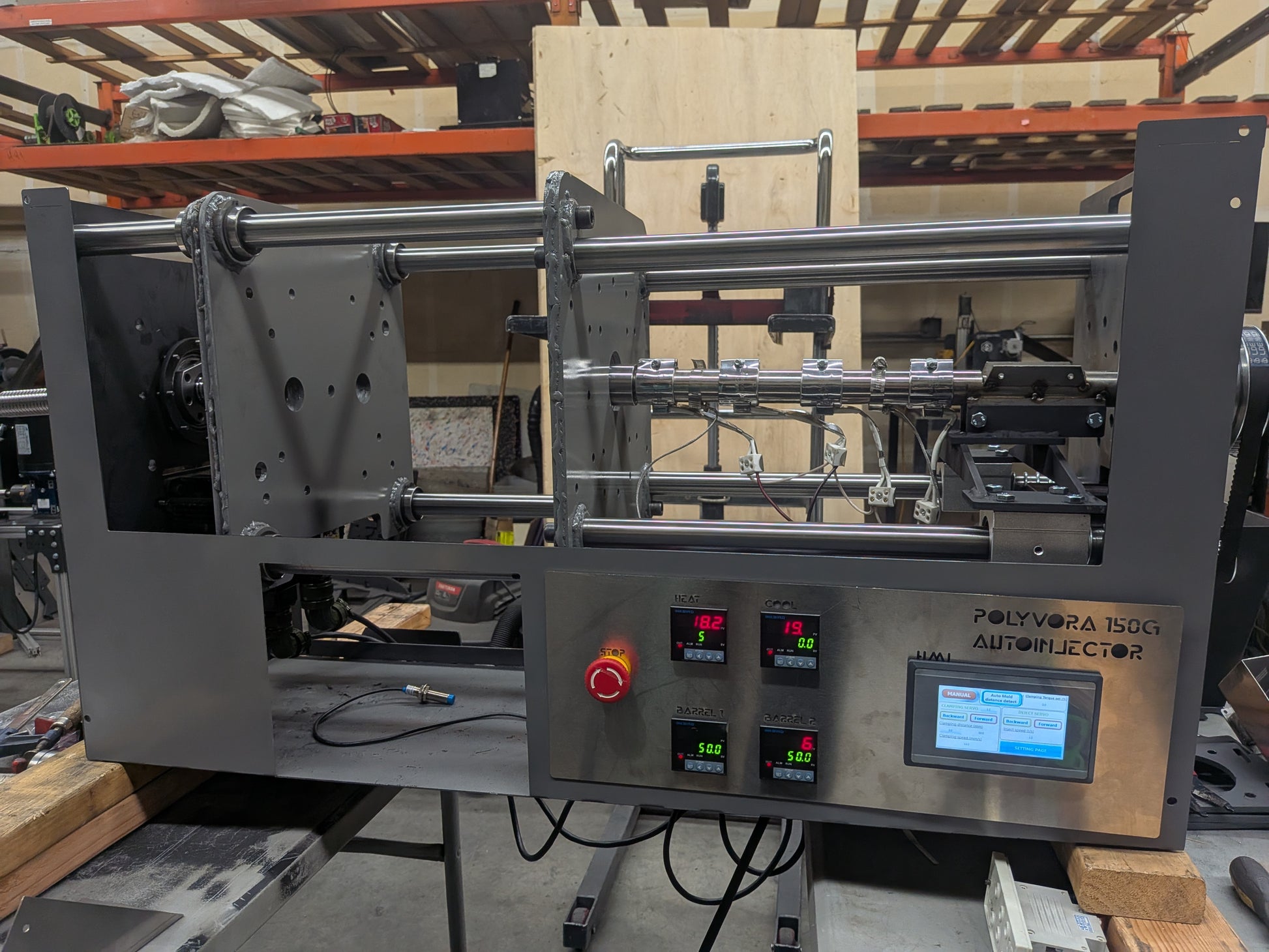

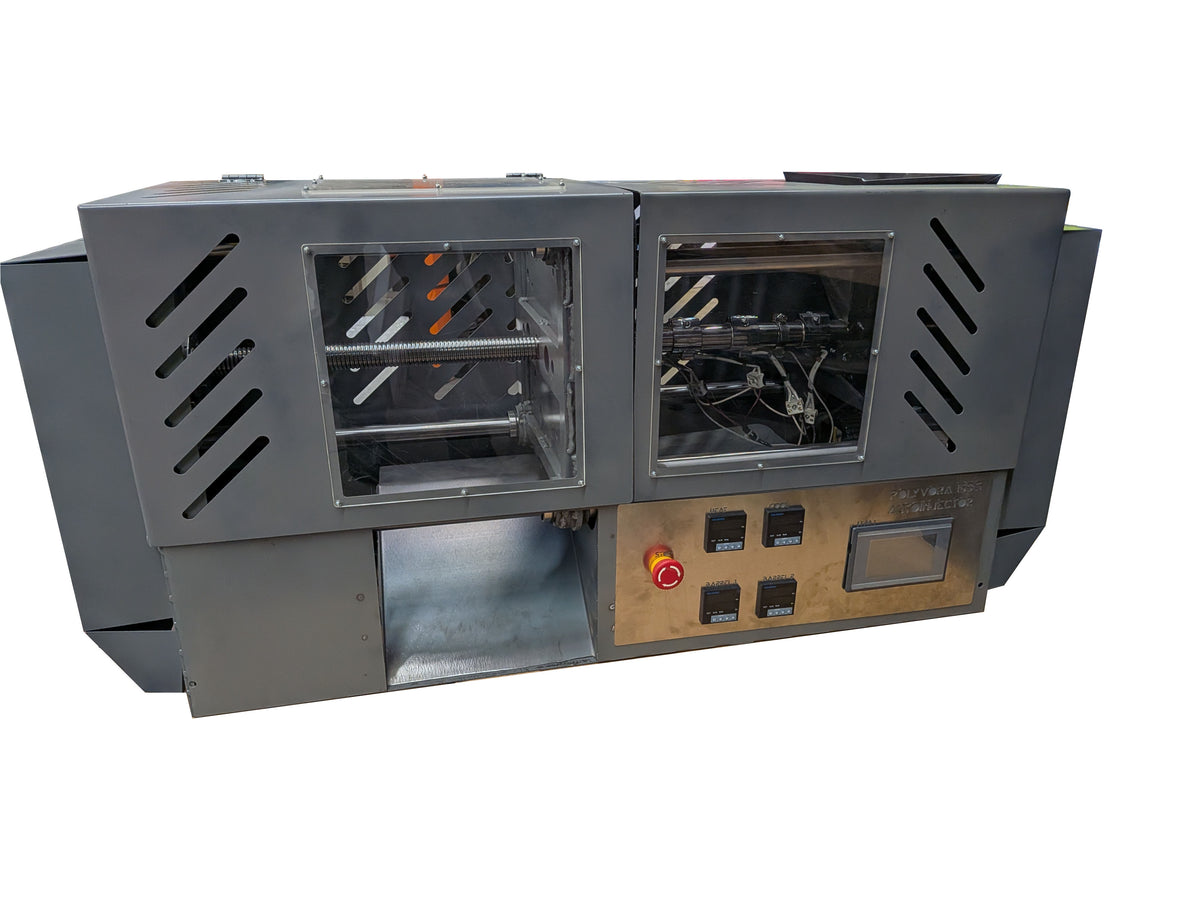

Our 150G machine provides high volume in production as well as scale of each molded part.

Specifications:

• Machine size:

  • 50g 750x450x450mm , 55kgs

    • 150g 1450x500x500mm , 95kgs

• Screw diameter:

  • 50g - 20mm

  • 150g - 30mm

• Max clamping force:

  •  50g - 40kN

  • 150G - 82kN

• Mold open stroke:

  • 50g - 20 to 80mm

  •  150G 20 to 200mm

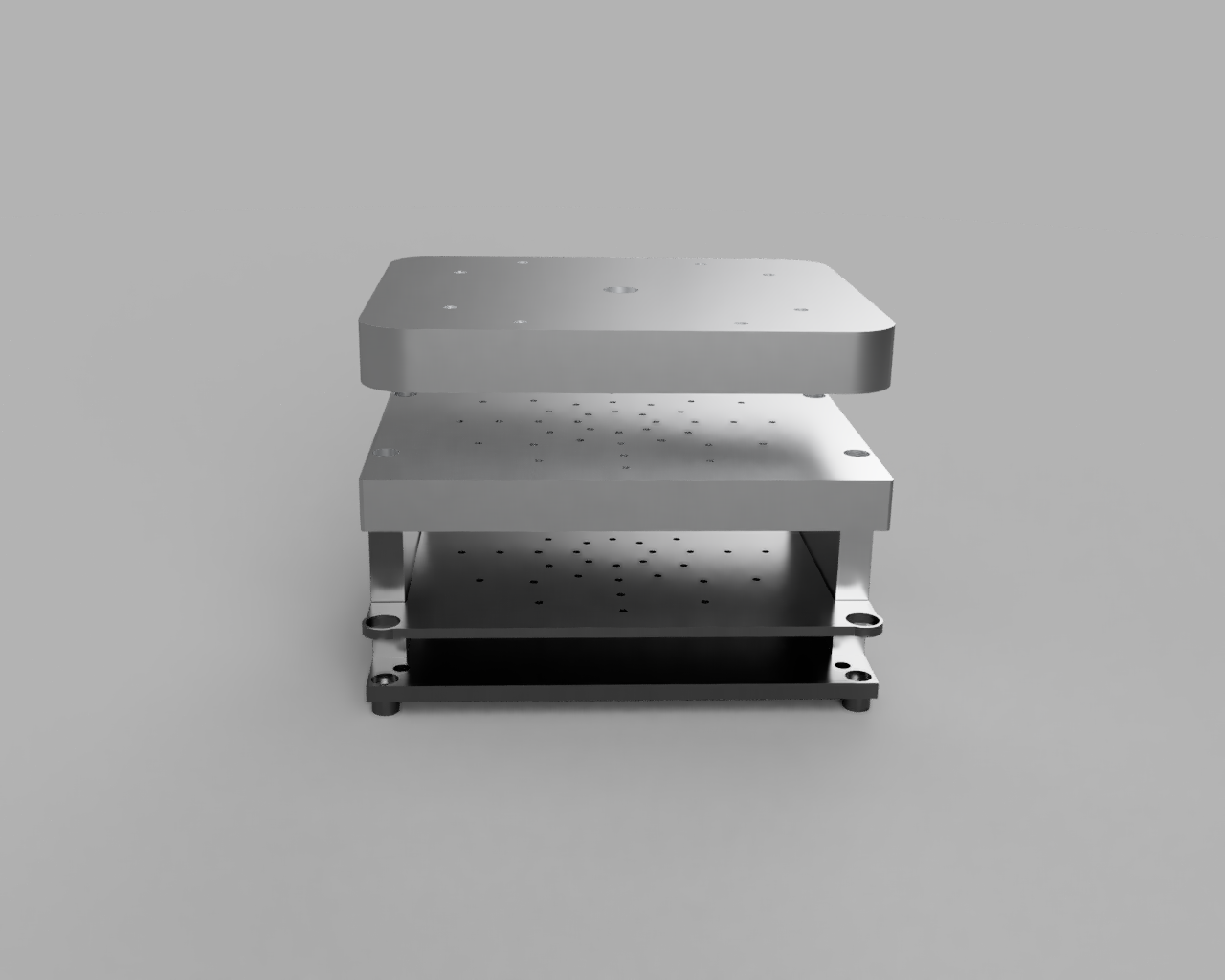

• Max mold size:

  • 50g 180x124mm (can be modified)

  • 150g 300x250mm (can be modified)

• Number of heater:

  • 50g 2 x max temp 300C

  • 150g 6 x max temp 300C

• Motor power:

  • 50g - 900Wx2

  • 150g - 1500Wx2

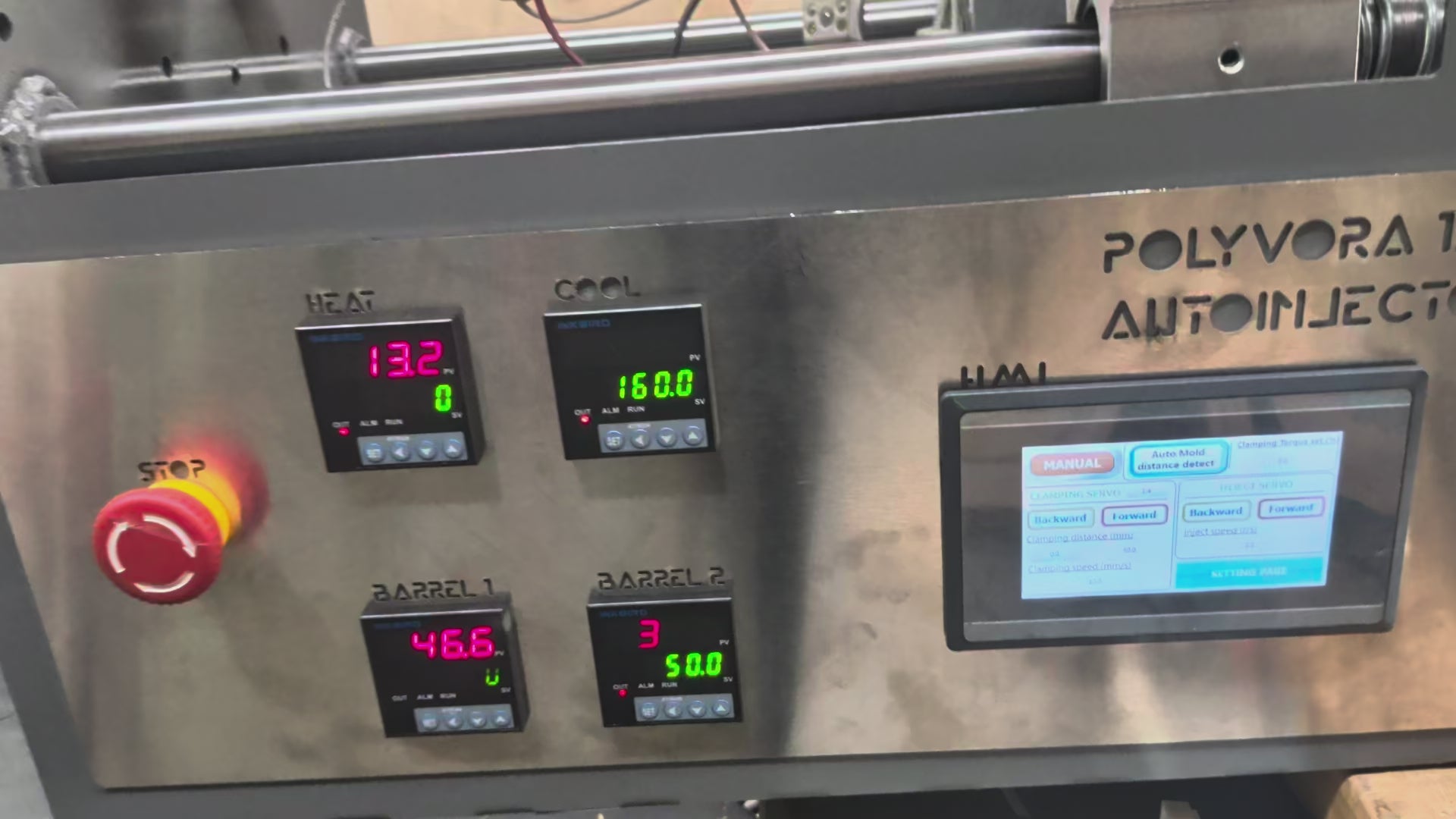

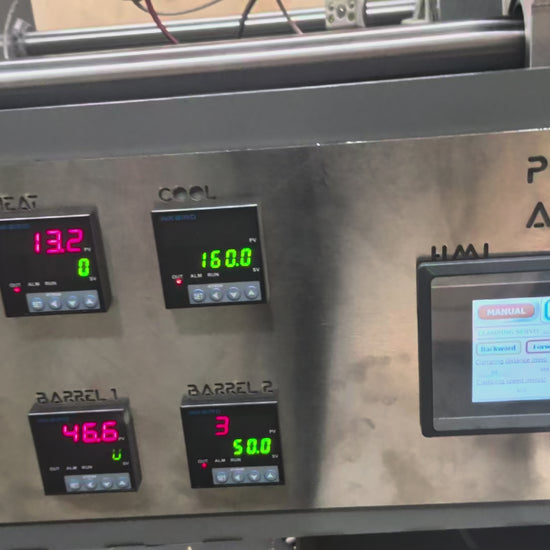

• Control system: PLC and HMI 4.3" touch

• Power:

  • 50g 220V-1PH, max 3kw

  • 150g 220V-1PH, max 5kw
