Extruder Basic
Extruder Basic
Regular price
$3,250.00 USD
Regular price
Sale price
$3,250.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Please request a quote to receive more information. Discounts are available for certain packages, prepayment, and for nonprofits. (Discounts do not apply when purchasing via a PO.)

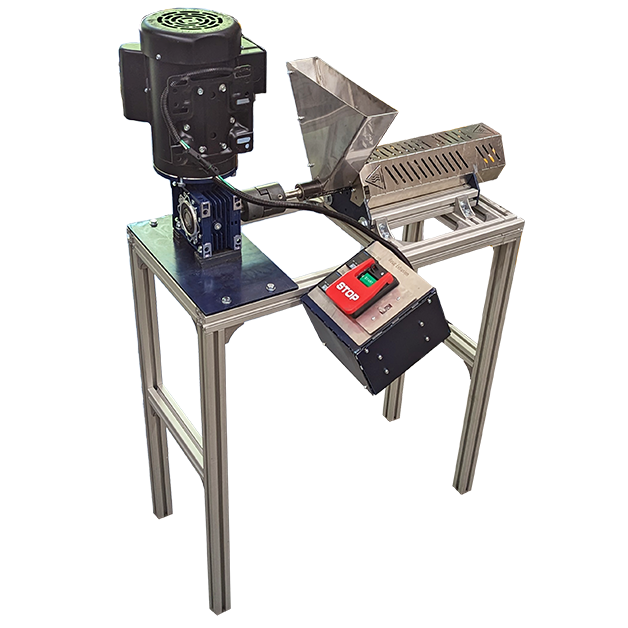

The Extruder Basic is a highly-capable machine for converting plastic shreds and pellets into shaped products. A die must be attached to the end of the extruder to provide the desired shape (e.g., filament, beams, etc.), or a mold can be attached to use the extruder for extrusion molding.
All Extruder Basic machines are built with US-compatible power and wattage, and are shipped after rigorous testing.
To reduce the potential for damage, the motor and hopper are removed for shipping and are affixed to the floor of the shipping pallet. Attaching these two components only requires connecting bolts and 4 wires. The only required tools for attaching these components are a phillips screwdriver, pliers, and a socket set.
Type: Single Screw
Voltage: 208-240 VAC Single Phase Default (120 VAC option available)
AMP: 14 A
Screw Diameter: 24.6 mm
Screw Length: 588 mm
Motor Power: 1 kw
Motor Output Torque: 104 Nm
Motor Output Speed: 80
Heating Zones: 2
Type: Single Screw
Voltage: 208-240 VAC Single Phase Default (120 VAC option available)
AMP: 14 A
Screw Diameter: 24.6 mm
Screw Length: 588 mm
Motor Power: 1 kw
Motor Output Torque: 104 Nm
Motor Output Speed: 80
Heating Zones: 2
