Extruder Pro
Extruder Pro
Regular price
$8,275.00 USD
Regular price
Sale price
$8,275.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Please request a quote to receive more information. Discounts are available for certain packages, prepayment, and for nonprofits. (Discounts do not apply when purchasing via a PO.)

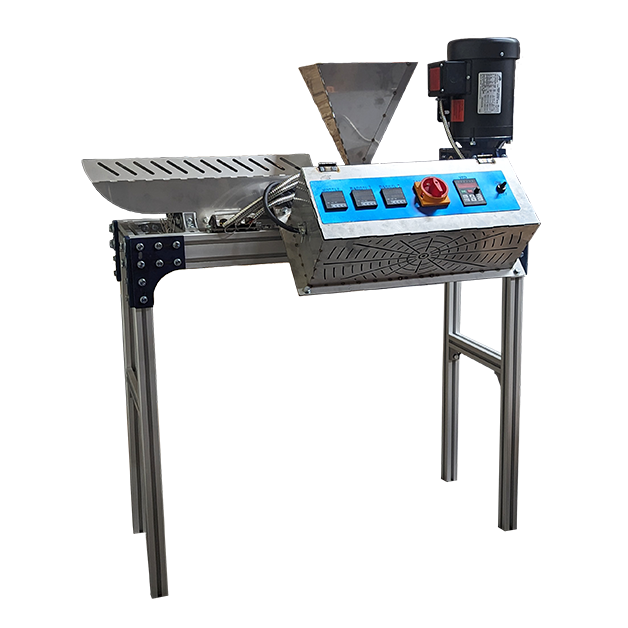

The Extruder Pro plastic extrusion machine processes approximately 4x more plastic per hour than the Extruder Basic, and fills molds 2–4x faster. All Extruder Pro machines are built with US-compatible power and wattage, and are shipped after rigorous testing.
The Extruder Pro plastic extrusion machine processes approximately 4x more plastic per hour than the Extruder Basic, and fills molds 2–4x faster. All Extruder Pro machines are built with US-compatible power and wattage, and are shipped after rigorous testing.
To reduce the potential for damage, the motor and hopper are removed for shipping and are affixed to the floor of the shipping pallet. Attaching the components only requires connecting bolts and 4 wires. The only required tools for attaching these components are a phillips screwdriver, pliers, and a socket set.
Version: 4
Power (W): 5 kW
Voltage: 208-240 VAC single phase
AMP: 22 A
Input Flake Size: Small
Screw diameter: 30 mm
Length of screw: 790 mm
Effective screw length: 600 mm
Rated Motor Power: 1.5-2.2 kw Motor Type
Rated Motor output Torque: 104 Nm
Rated Motor output speed: 180-300
Max. Motor and Inverter power: 3 kW
Recommended motor shaft: 1.125″
Heating zones: 3
Heating power: max. 2 kW
